Details of product :
1. Firm and durable case, made of metal or Aluminium plate.
2. Different version, different configurations, different prices.
3. Fast response time, fast and smooth use.
4. Standby all day long, no worry about Lifespan.
5. Explosion-proof glass, protecting passerby and LCD panel.
6. Display large amount of information,Easy to color.
7. Response Time of the display 5ms
8. Many specifications and models, size series, variety, convenient
and flexible use, maintenance, update, upgrade easy, long service
life.
| LCD |
| Brand | LG |
| Panel Type | a-Si TFT LCD |
| Application | Indoor |
| Panel Size | 43" |
| Display Active Area | 941.184(H)x529.416(V) |
| Display Colors | 8- bit, 16.7M |
| Number of Pixels | 1920×1080P |
| Pixel Pitch | 163.35(H) ×490.05(V) |
| Viewing Angle | 89°(U) / 89°(D) / 89°(L) / 89°(R) |
| Luminance of White | ≥380 cd/m² |
| Working Life | More than 6000hrs |
| Touch Screen |
| Technology | Glass plus glass Capacitive Sensing Module |
| Touch Points | 10 point |
| Accuracy | Less than 2.5mm |
| Resolution | 25ppi(Min.) |
| Cover Glass | 4～6mm,hardness more than 7 mohs |
| Opening System |
| OS | Windows |
| CPU | Intel core I3 |
| RAM | DDRIII 4GB |
| Storage | HDD 500GB |
| TF card slot | Support MAX 32G |
| Video Output | HDMI Video Output |
| Audio Output | Dual-channel stereo audio output |
| Network | LAN(RJ45),WIFI, Bluetooth |
| Extenal Interfaces | USB 2.0 × 2,RJ45(LAN) × 1 |
| Internal Interfaces | Earphone Output × 1,USB 3.0 Type-A × 1,Mirco SD × 1,USB Type-C OTG
× 1 |
| RTC | Support |
| Language | English (United States Default, multi language supported) |
| Audio Mode | Stereo | Audio Mode | Stereo |
| Operating environment |
| Operating Temp./Hum. | 0℃～50℃/20%～80% |
| Storage Temp./Hum. | ‐10℃～60℃/5%～95% |
| Others |
| Power consumption | 8Ω/5W × 2 |
| Audio Mode | Stereo |
| Power Voltage | AC 220V,50Hz/60Hz |
| Consumption | 118Watt (Typ.) |
| Appearance | Classic type, Stents shapes, Chassis, Other customized |
| Certificate | CE FCC ROHS |
| Warranty | 1 year |
| Product’s Dimension | 1500*750*520mm |
| Net Weight | 103KG |
| Wooden Package(Size) | 1650*930*880mm |
| Gross Weight(With packing) | 171KG |

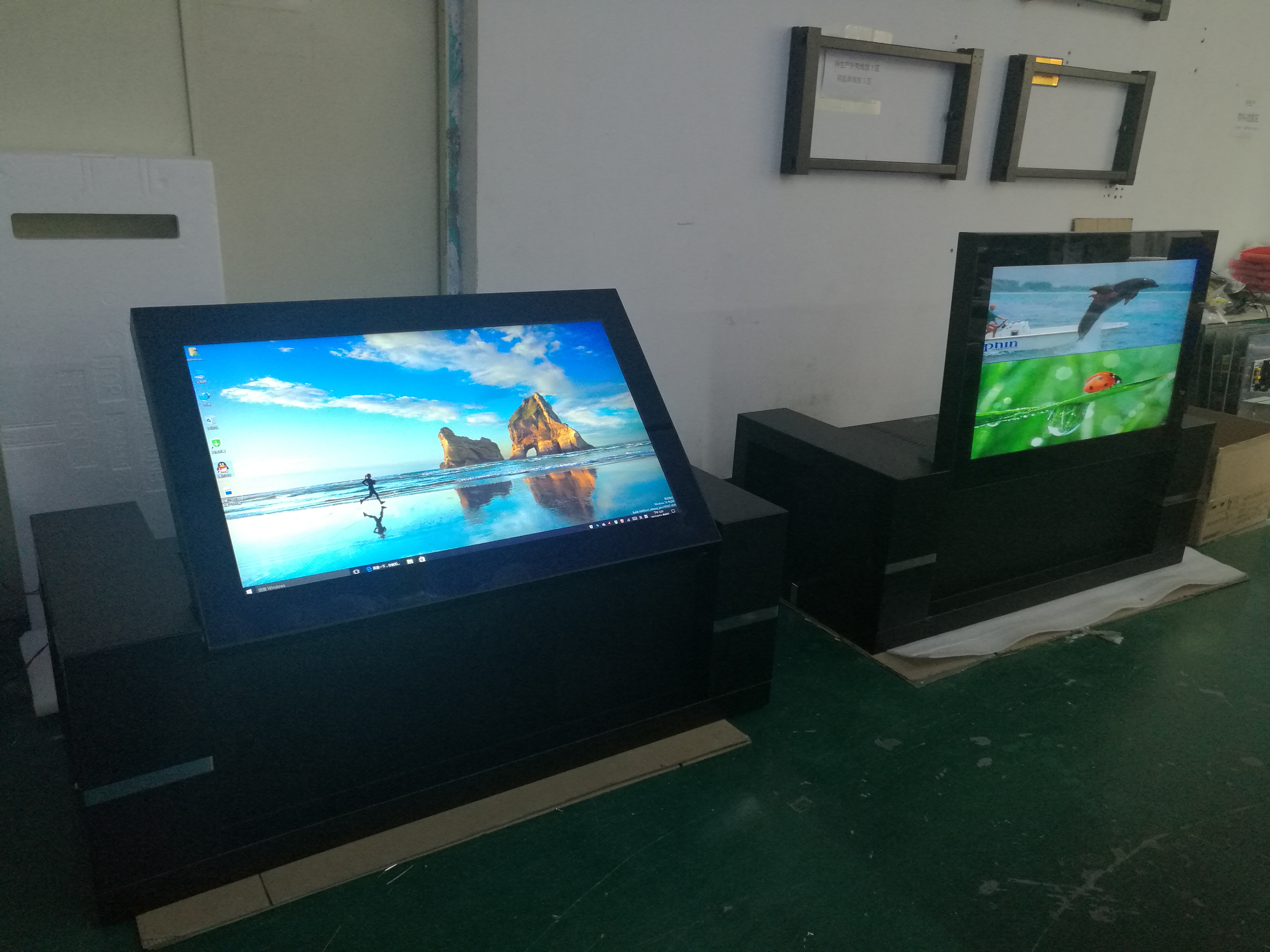

Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:Does your company support customization?
A:Yes,we support customization.Customizable festures
include,appearance,camera,brightness,logo,NFC,scanner,printer,discrete
graphics,wheels,color,etc.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special
requirements.
2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and
payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.
Q:When can I get the quotation?
A:We usually quote within 12 hours after we got your inquiry.
If it is very urgent,please call us or contact us via email,Skype
or WhatsApp.
Q:What kind of design and development capabilities do you have?
A:artwork/ Instruction manual/ product design according to
customer's requirement.
