Indoor LCD Video Wall Display TFT Seamless Video Wall Monitors
Details of product:
1.Video format is supported PAL/NTSC.
2.Android system configuration, It suit be used for education and
teaching.
3.Operating temperature can be controlled at -20°C~+50°C.
4.UHD 4K High resolution, display content clearly visible.
5.OSD multi-language,support Chinese, English and other
multi-language.
6.The appearance design is very thin, the touch use effect is good.
7.Including dual system configuration and conference software, not
only for teaching but also for conferences.
8.The resolution can be adjusted synchronously according to network
speed.
| Display Information | | Screen Size | 55inch | 65inch | 75inch | 86inch | | Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | | Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | | Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P | | Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | | Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 | | Active Area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1913x1084mm | | Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 | | Response Time | 8ms | 8ms | 8ms | 8ms | | Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B | | Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz | | Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | | Touch System | | Sensing Type | Infrared System (Multi 10 point touch) | | Response Time | 6ms | | Connection | Full-speed USB (Driver free) | | Surface Protection | Tempered Glass with 4mm thickness Standard | | Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play | | Bluetooth | Bluetooth4.0 | | Speaker | 15W x2 | | Network | WIFI/ RJ45 | | Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker
out*1/ Mic in*1 | | Built-in Dual System Android and Windows | | Operating System | Android 6.0 | | CPU | Quad Core Cortex A7 1.8 GHZ | | RAM | DDR3 2G | | ROM | 32G | | SD card slot | Support MAX 128G | | Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2,
AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD
card slot*1, Touch USB*2, MIC*1 | | Languages | English, French, Germany, Arabic, Italian, Japanese,Korean,
Russian, Spanish, etc | | Power | | Power Supply | 96~264V AC, 50/60Hz | | Power Consumption | 220W~500W | | Operating Temperature | 0℃~50℃ | | Storage Temperature | -10℃~70℃ | | Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard
software | | Ambient Conditions | | Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm | | Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm | | Net weight | 40KG | 50KG | 68KG | 76KG |
|

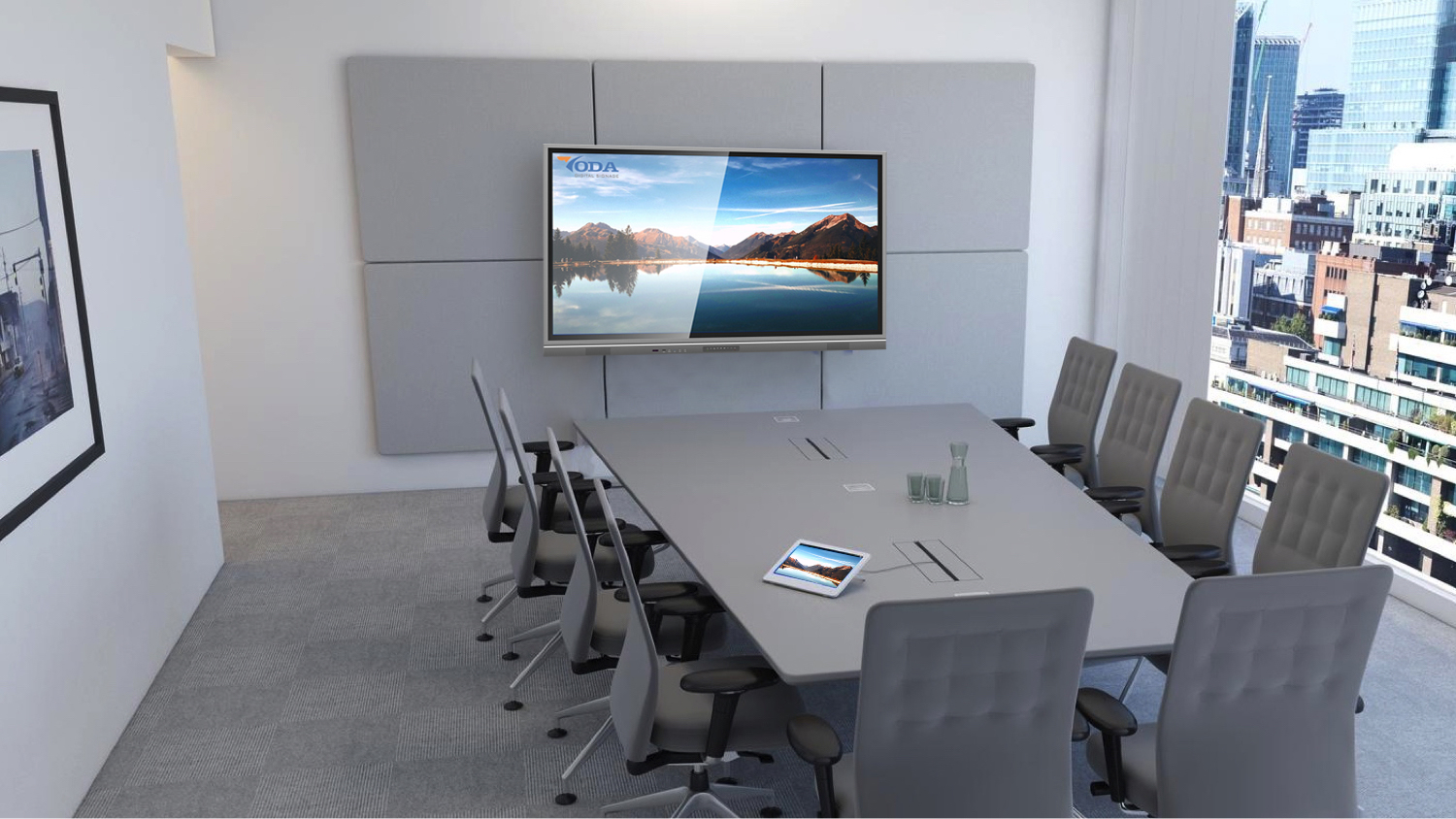

Real-picture
Product's details
Application
FAQ
Q:If you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact
information,you can send me
email,you can call me or skype me,i will reply you ASAP.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:May I buy samples from you?
A:Yes!You are welcome to place sample order to test our superior
quality and service.
Q:Can you provide us digital solution?
A:Yes,our experienced technician can provide you any digital
signage solution.
Q:Are you a Manufacturer or Trading Company?
A:We are a professional Advertising Display and LCD Touch Screen
manufacturer since 2016 with consistent quality control and very
positive & approving customer feedback.
