LCD Touch Screen Table Drafting Table Game Table With Touch Screen
Details of product :
1. View Angle is 178degrees (up and down)/178 degrees (left/right).
2. The working time can be as long as 50,000 hours, so the product
life need not worry.
3. Support a variety of languages, such as English, German,
Italian, Spanish and so on, you can choose according to your
preferences.
4.Low voltage applications, low drive voltage, solid use safety and
reliability improvement.
5.With Glass plus and glass Capacitive Sensing Module Technology.
6.Touch screen parts are easy to maintain.
7.The supported image formats are JPG,BMP,PNG, and GIF.
8.Explosion-proof glass, protecting passerby and LCD panel.
| LCD |
| Brand | LG |
| Panel Type | a-Si TFT LCD |
| Application | Indoor |
| Panel Size | 43" |
| Display Active Area | 941.184(H)x529.416(V) |
| Display Colors | 8- bit, 16.7M |
| Number of Pixels | 1920×1080P |
| Pixel Pitch | 163.35(H) ×490.05(V) |
| Viewing Angle | 89°(U) / 89°(D) / 89°(L) / 89°(R) |
| Luminance of White | ≥380 cd/m² |
| Working Life | More than 6000hrs |
| Touch Screen |
| Technology | Glass plus glass Capacitive Sensing Module |
| Touch Points | 10 point |
| Accuracy | Less than 2.5mm |
| Resolution | 25ppi(Min.) |
| Cover Glass | 4～6mm,hardness more than 7 mohs |
| Android OS |
| OS | Windows 10 |
| CPU | Intel core I3 |
| RAM | DDRIII 4GB |
| Storage | HDD 500GB |
| Video Output | HDMI Video Output |
| Audio Output | Dual-channel stereo audio output |
| Network | LAN(RJ45), WIFI, Bluetooth |
| Extenal Interfaces | USB 2.0 × 2,RJ45(LAN) × 1 |
| Internal Interfaces | Earphone Output × 1,USB 3.0 Type-A × 1,Mirco SD × 1,USB Type-C OTG
× 1 |
| RTC | Support |
| Language | English (United States Default, multi language supported) |
| Audio Mode | Stereo | Audio Mode | Stereo |
| Operating environment |
| Operating Temp./Hum. | 0℃～50℃/20%～80% |
| Storage Temp./Hum. | ‐10℃～60℃/5%～95% |
| Others |
| Power consumption | 8Ω/5W × 2 |
| Audio Mode | Stereo |
| Power Voltage | AC 220V,50Hz/60Hz |
| Consumption | 98Watt (Typ.) |
| Appearance | Classic type, Stents shapes, Chassis, Other customized |
| Certificate | CE FCC ROHS |
| Warranty | 1 year |
| Product’s Dimension | 1418*768*636mm |
| Net Weight | 103KG |
| Wooden Package(Size) | 1650*930*880mm |
| Gross Weight(With packing) | 171KG |

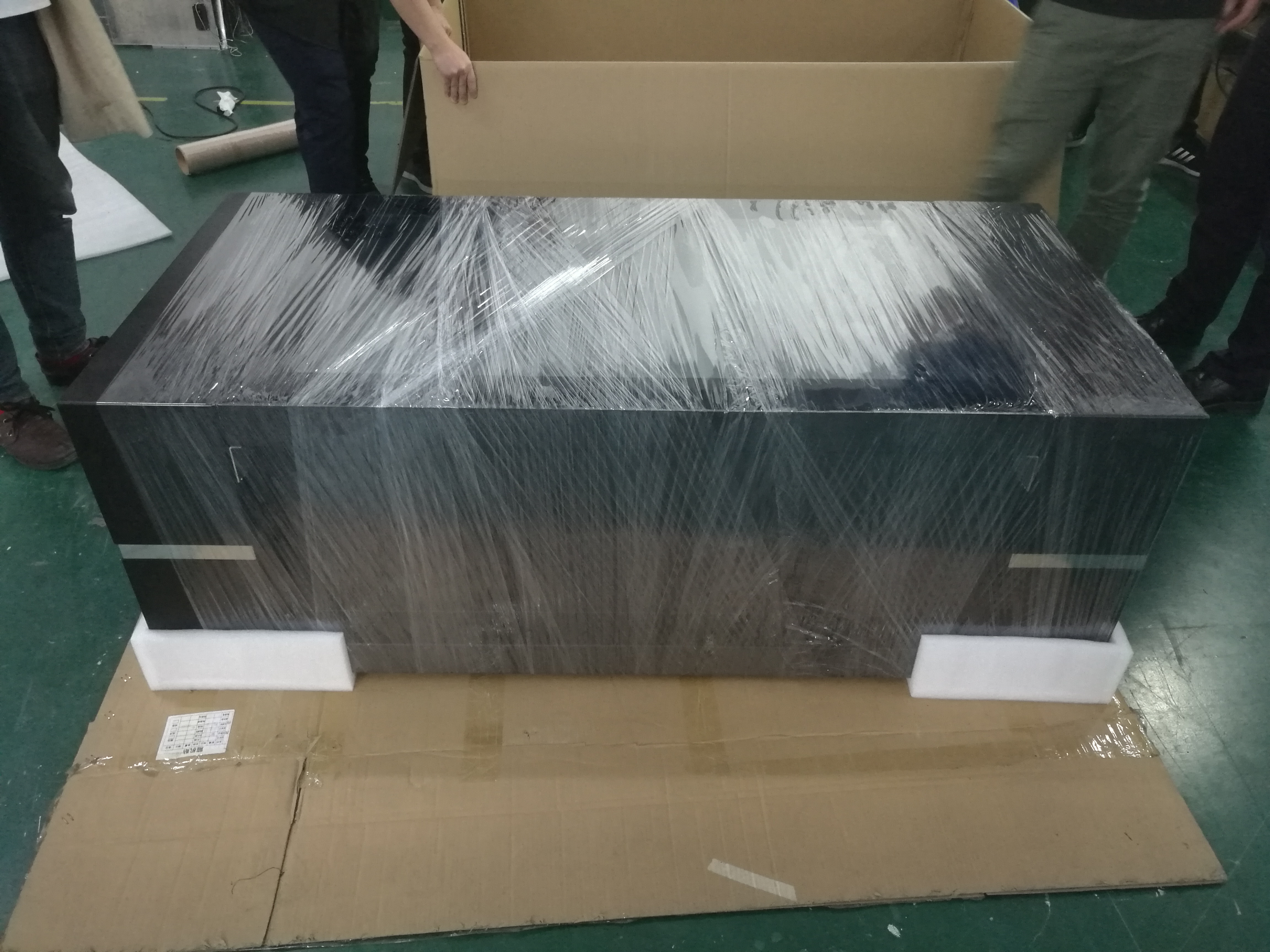

Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:Can I order a sample?
A:We have a very strong quality control Samples are always
available for checking quality and can be dispatched to you very
quickly.
Q:Can you put my brand name (logo) on these product?
A:Yes. We can provide professional OEM services.Our campany accepts
to make the logo free for bulk orders.
Q:What kind of design and development capabilities do you have?
A:artwork/ Instruction manual/ product design according to
customer's requirement.
Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design
with Tempered Glass Surface.
Q:What is the company's business philosophy?
A:Quality first, service first.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
