Indoor Stretched Bar LCD Display TFT Android System Advertising
Display
Details of product:
1. Good quality LCD panel, BOE,SAM and LG Brans are available for
you to choose.
2.Many specifications and models, size series, variety, convenient
and flexible use, maintenance, update, upgrade easy, long service
life.
3. The machine has multiple interfaces, such as Earphone Output ×
1,USB 3.0 type-a × 1,Micro SD × 1, and USB type-c OTG × 1.
4. Full view, multi-function, easy to use.
5. The voltage is 3.3v, 5V, 12V for customers to choose.
6. Display quality ranges from the simplest monochrome character
graphics to video displays of various specifications with high
resolution, high color fidelity, high brightness, high contrast and
high response speed.
7.View Angle is 178 degrees (up and down)/178 degrees (left/right).
8.Special bar display resolution satisfies special display
applications.
LCD Panel
| Panel Size | 37inch |
| Active Area | 919.3(H) × 138.85 (V) mm |
| Dimension | 998*284.8*78mm |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 1,920x190 |
| Pixel Pitch | 121.5(H) x 364.5(W)um |
| Pixel Arrangement | RGB vertical stripe |
| Display Mode | ADS |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 700cd/m 2 |
Motherboard
| CPU | Rockchip RK3288,Quad core Cortex A7 1.8 GHz |
| RAM | DDR3 2G |
| Storage | EMMC 8GB/16G/32G Optional(Standard 8GB) |
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
Network
| RJ45 |
| wifi,Wi-Fi 802.11b/g/n |
| Blueteeth 4.0 |
3G/4G(optional),WCDMA,EVDO,CDMA,
GSM850/900/1800/1900MHz/2100MHz |
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
Software
| Operating System | Google Android 5.1 System |
| Language | Multi-Language Supported |
Video
| Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps |
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |
system management
| File Management |
| Android System,open root access |
| Time switch |
| OTA remote upgrade(customized) |
Real-picture
Product's details

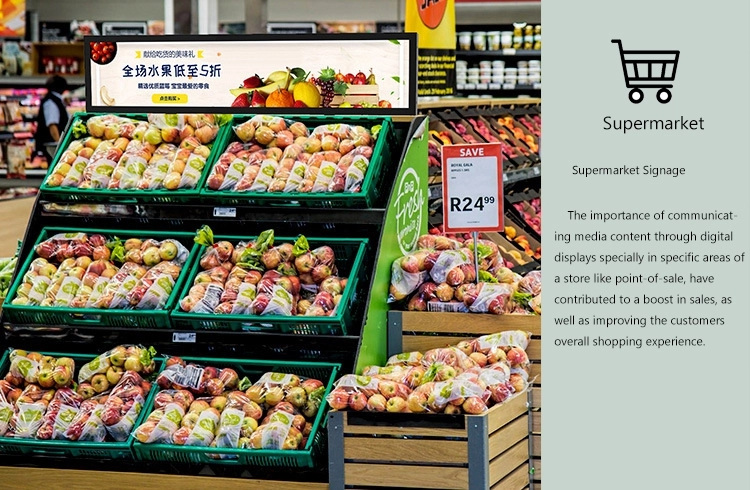

Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design
with Tempered Glass Surface.
Q:May i have my logo on my products?
A: Yes. We offer logo customized service.
Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special
requirements.
2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and
payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:What's the shipment terms and delivery time of your company?
A:Well,they depends on the quantity of your order.As you know,we
need time to manufacture the machines.but mostly,the shipment time
is 7-15 working days after delivery.For delivery way,for sample and
bulk order< 100KG,we will kindly suggest Express and Air
freight,when Air freight and Sea shipping for bulk
order>100KG.As for detailed cost, it depends on your final
order.
