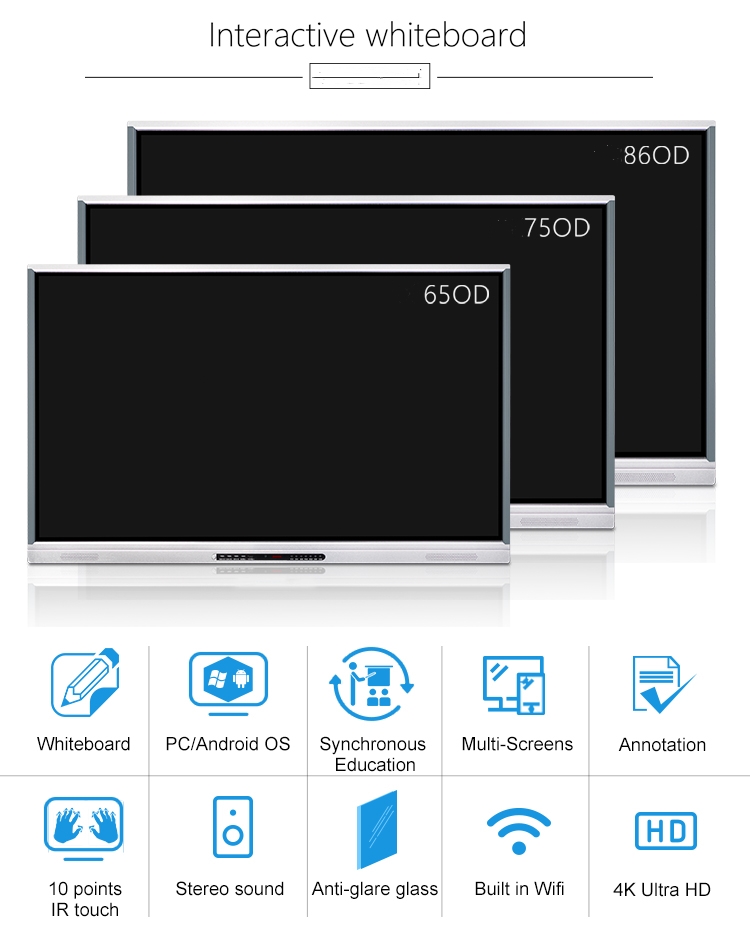

55 Inch Smart Digital Whiteboard LCD Interactive Touch Screen All
In One PC
Details of product:
1. Sensitive touch box, click < 8ms, continuous writing <
3ms.
2. Strong touch compatibility, support multi - point operation
protocol, multi - person simultaneous writing, etc.
3. Display large amount of information,Easy to color.
4.The machine has multiple interfaces, such as Earphone Output ×
1,USB 3.0 type-a × 1,Micro SD × 1, and USB type-c OTG × 1.
5. The supported image formats are JPG,BMP,PNG, and GIF.
6. Operating temperature can be controlled at -20°C~+50°C.
7. Liquid crystal materials are organic polymer synthesis materials
with high purity.
8.Switch between single and multi-touch modes.
| Display Information |
| Screen Size | 55inch | 65inch | 75inch | 86inch |
| Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Active Area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1913x1084mm |
| Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 |
| Response Time | 8ms | 8ms | 8ms | 8ms |
| Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B |
| Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours |
| Touch System |
| Sensing Type | Infrared System (Multi 10 point touch) |
| Response Time | 6ms |
| Connection | Full-speed USB (Driver free) |
| Surface Protection | Tempered Glass with 4mm thickness Standard |
| Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play |
| Bluetooth | Bluetooth4.0 |
| Speaker | 15W x2 |
| Network | WIFI/ RJ45 |
| Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker
out*1/ Mic in*1 |
| Built-in Dual System Android and Windows |
| Operating System | Android 6.0 |
| CPU | Quad Core Cortex A7 1.8 GHZ |
| RAM | DDR3 2G |
| ROM | 32G |
| SD card slot | Support MAX 128G |
| Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2,
AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD
card slot*1, Touch USB*2, MIC*1 |
| Languages | English, French, Germany, Arabic, Italian, Japanese,Korean,
Russian, Spanish, etc |
| Power |
| Power Supply | 96~264V AC, 50/60Hz |
| Power Consumption | 220W~500W |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~70℃ |
| Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard
software |
| Ambient Conditions |
| Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm |
| Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm |
| Net weight | 40KG | 50KG | 68KG | 76KG |
Real-picture
Product's details

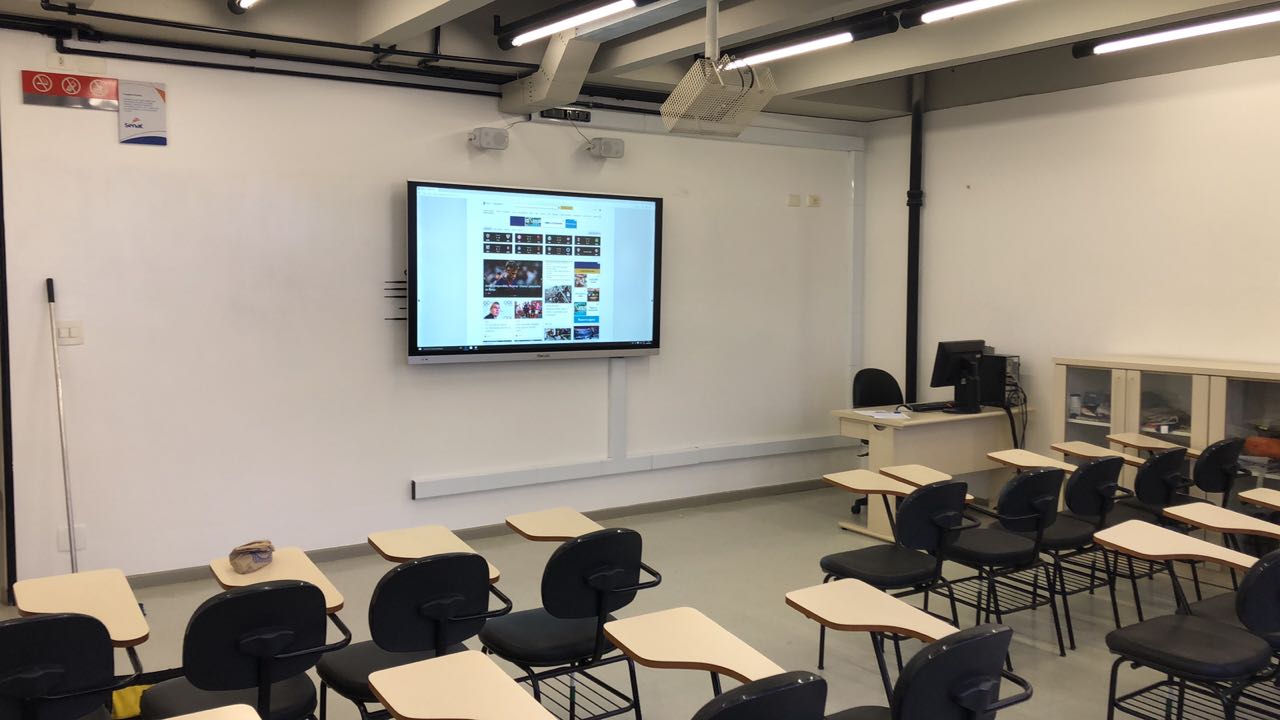

Application
FAQ
Q:Are you a Manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:What are your exporting countries?
A:More than 30 countries including
Dubai,American,Germany,Poland,South Korea,Thailand,Vietnam,etc.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design
with Tempered Glass Surface.
Q:What is the company's business philosophy?
A:Quality first, service first.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
Q:What is the shipping package?
A:Strong bubble bag+carton+wooden case/3mm Honeycomb box. Transport
breakage rate is less than 1%.
