BOE 32Inch 400Nits OC Wall Mounted Touch Screen Advertising Display
Details of product:
1.Streamlined appearance design, fashion, simple atmosphere.
2. High brightness, good picture quality and high definition.
3.The outer frame is made of high quality aluminum alloy, which is
oxidized. The back shell is powdered at high temperature. The
surface is wear-resistant and anticorrosive.
4. The surface adopts toughened glass design, physical toughened
Morse level 7 explosion-proof.
5. Support the same screen different display, multi-screen display.6. The motherboard adopts the RK3288 Cortex-A17 quad-core
application processor with the main frequency up to 1.8GHz and fast
computing speed.
7. Super Mali-T764 GPU, support 4K, H.265 hardware decoding.
8. Support horizontal/vertical playback, support 180-degree
rotation function, natural, convenient.
| Appearance | Surface | Tempered Glass |
| Colour | High grade metal enamel shell, black and silver frame |
| Materials | Aluminum profile frame, a cold rolled sheet |
| LCD Panel | Size | 32" |
| Brand | BOE |
| Resolution | 1920*1080 |
| Active Area | 698.4(H) ×392.85(V) |
| Brightness | 400cd/m2 |
| Viewing Angle | 89/89/89/89 |
| Contrast Ratio | 1200:1 |
| Color Depth | 16.7M |
| Scanning Frequency | 60Hz |
| Backlight Type | WLED |
| Configuration | System | Windows i3,4+500G(HDD) |
| nterface | Built-in speaker and camera,Support
Ethernet,Wi-Fi,RS-232,MIPI,RJ45,USB etc. |
| nterface | Built-in speaker and camera,Support
Ethernet,Wi-Fi,RS-232,MIPI,RJ45,USB etc. |
| Loudspeaker | 8W*2 |
| Power Supply | Input Power | AC 110-240V, 50/60HZ |
| Work Environment | Work Temperature | 0℃—45℃ |
| Work Humidity | 20%-80%RH |
| Store Humidity | 20%-80%RH |
| Other | Dimensions | 730mm*430mm*50mm |
| Carton Size | 813X512X56mm |
| Net Weight | 10.05 KG |
| Gross Weight | 11.55KG |
| Installs Way | Wall-mounted |

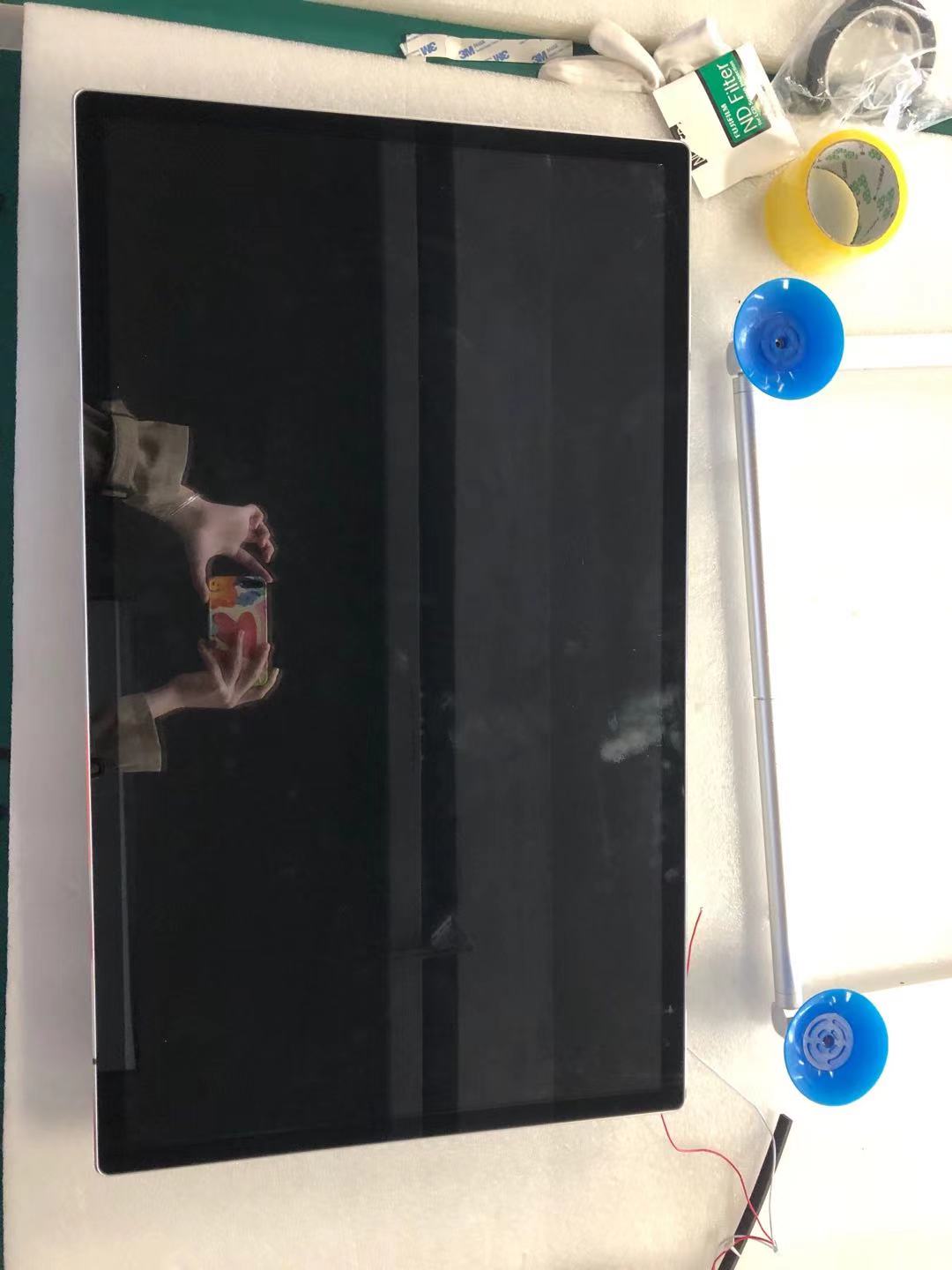

The Real-picture of the LCD advertising display
The Product's details of the LCD Video Wall
The Application of the LCD Video Wall
FAQ
Q:May i have my logo on my products?
A:Yes. We offer logo customized service.
Q: What's the shipment terms and delivery time of your company?
A:The goods can be shipped by courier,by air or by sea. Depend on
quantity and customer's requirement.
Q: What is the price? And do you provide customization, OEM or ODM
service?
A:Our price is depend on the functions, sizes, designs, quantities,
applications etc, please send the inquiry and tell us more about
your requirements and project then enable us to quote the price
accordingly. We have structure engineer teamwhich can provide
customization,OEM or ODM service.
Q: What is your package box?
A:Stand are packaged using Honeycomb boxes, wood pallets or flight
case,
depending on what is required.
Q:How to update the program to digital signage?
A:Stand-alone version:update the program by USB flash drive.
Network version:remote control updte the program with software.
Q:How does your manufacturer do regarding quantity control?
A:Quantity is priority. Our manufacturer has gained CE , Rosh, FCC
authentication etc.
